Multi-Cor / PBC Exposed Fastener Panel
Multi- Cor / PBC is a corrugated metal panel that are strong and stylish. The consistent, rounded corrugations of these corrugated panels create a nostalgic appeal that is perfect for walls, roofs, or interior accents. Horizontal installations further showcase the panelsβ corrugated design. Its textured appearance reduces oil canning creating a much more finished look. Commercial and Industrial projects are the most common applications for Multi-Cor / PBC Panels. They have been used in projects for schools, studios, botanical/agricultural buildings, and even restaurants.

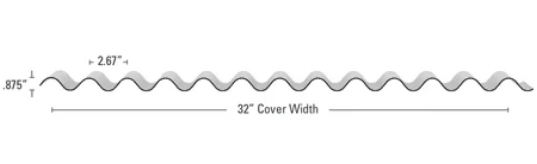

Coverage Width β 32β (34.67β available upon request)
Rib Spacing β 2.67β on center
Rib Height β 0.875β, ( 0.5β available upon request)
Minimum Slope β 1:12
Panel Attachment β Exposed Fastening System
Gauge β Standard 26GA Galvalume, Optional- 22GA, 24GA, 29GA
Finishes β Smooth (standard); Embossed (optional)
Coating β Kynar 500 (PVDF), Silicone Modified Polyester (SMP)
